Plasma Cutting in OntarioAdvanced Profiles Limited provides their plasma cutting services to the province of Ontario proudly maintaining a consistent and superior level of quality and reliability.

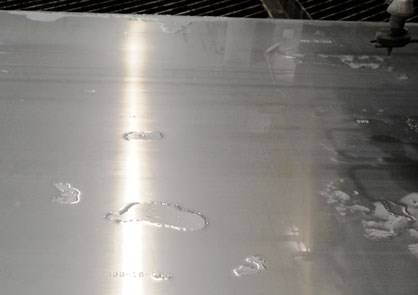

Whether it is plasma marking, cutting or beveling they are ready to meet their client's most demanding applications and ensuring client satisfaction.

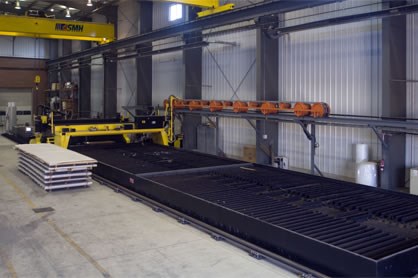

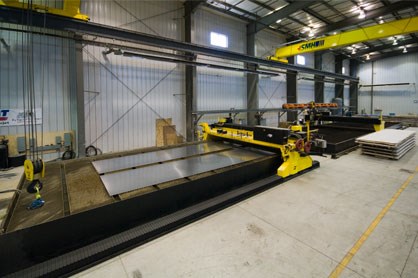

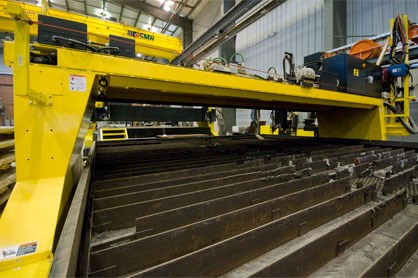

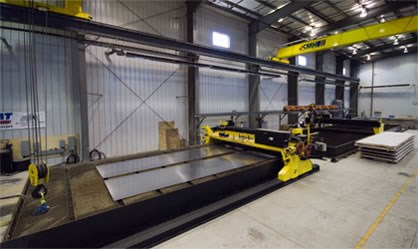

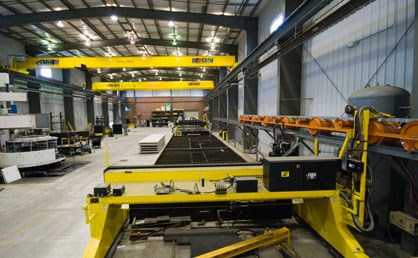

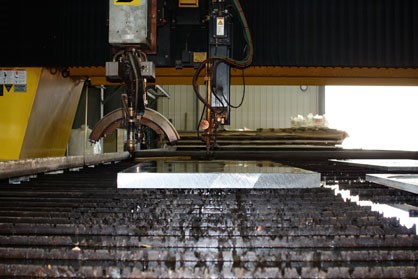

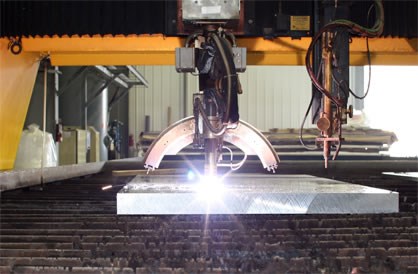

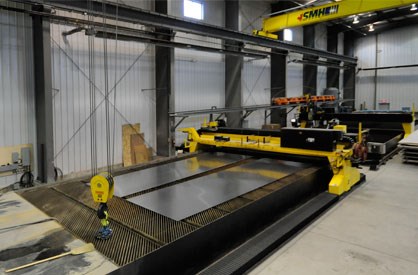

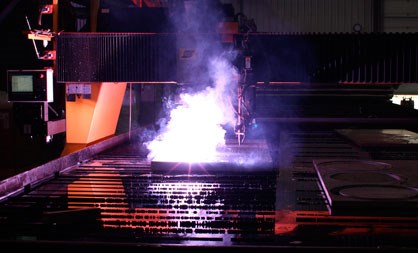

Their plasma process provides for a positional accuracy of plus or minus .015 inches, sharp top and bottom edges, two degrees (or less) of cut edge angle and virtually no dross, and at 18 feet by 60 feet of table space, materials with a footprint of over 1000 square feet are an easy task.

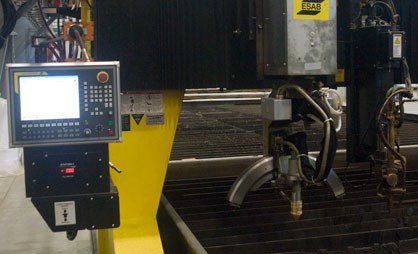

They are capable of cutting combination bevels on material up to 1 1/4 inches and performing multiple pass bevels for "Y" class beveling.
Their services encompass processing of:
  • Mild Steel

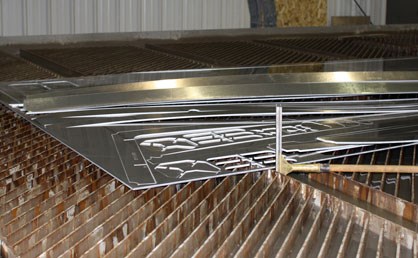

  • Stainless Steel

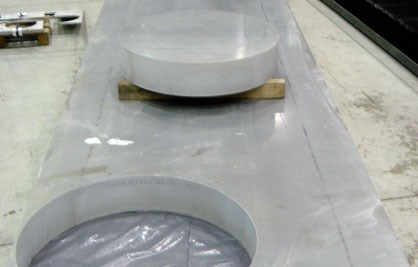

  • Aluminum
  • Bevel Cutting
Application of Plasma Cutting
Application of Plasma Cutting
Developed in the 20th century plasma cutting has been used as an economical method of cutting metal in many industries such as the automotive and military sectors as well as various other goods manufacturers.

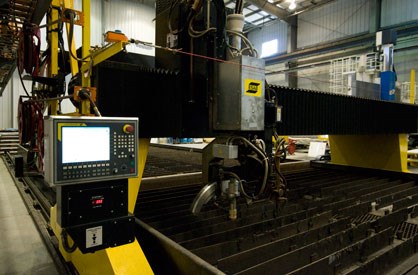

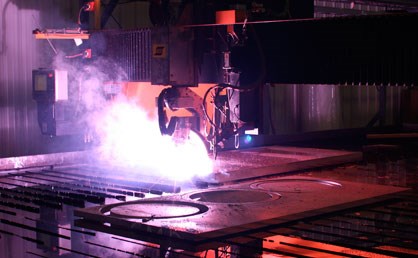

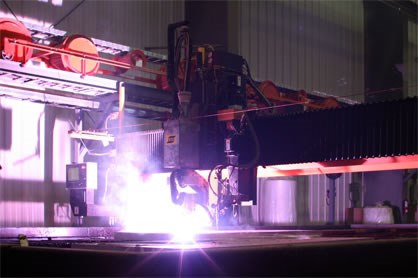

A conceptually simple mechanism, a plasma cutter consists of what is referred to as a torch. The torch contains an extremely constricted nozzle through which passes gas. The gas can be anything from surrounding air to nitrogen, argon or pure oxygen. Through this gas an electrical arc is sent through, raising the temperature of the gas which causes it to enter a 4th state of matter- known as plasma.

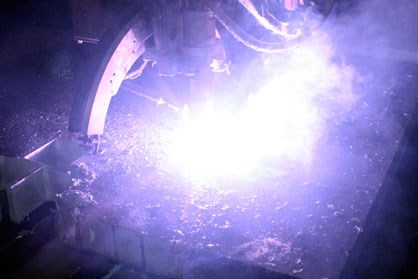

As the plasma cutter can pass through metal with little resistance it makes for an extremely efficient and precise method of cutting. Plasma can reach up to approximately 30,000 Fahrenheit (16,649 Celcius) and at this temperature, metal is reduced into molten slag, additional gas is directed around the perimeter of the cutting area to shield the cut and maintain precision.
Large industrial plasma cutters make a quick job of creating metal I-beams for instance or other metal sheet goods. On a smaller scale plasma cutters can be used for finer artistic work or boring through thick metal – such as safe doors.
Plasma cutters can also be used for welding, machining and engineering support. Applying plasma in welding is especially beneficial as charging the gas with electric current causes a barrier to form around the weld point, protecting it from oxidation.
If you would like more information on plasma cutting visit us at http://www.advancedprofiles.com/ or reach one of our representatives at (905) 695-1245.
Alternately if you are a resident of Ontario you can visit us at our Head Office Facility located at:
8110 Keele Street
Concord, Ontario
L4K 2A3
Metalworking Industrio Products & Solutions Metalworking KMT - Metal Cutting
KMT - Powerful Cutting Solutions KMT Waterjet Success Stories KMT - Water Jet Cutting Industry Publications
Stone is a difficult material to cut since it is both hard and brittle. Without the proper equipment, you can easily damage the expensive material. To find the expert who can handle the job, click here.
There are countless number of metal workers in a directory, so how can you find the right company? This website will be a good place to start on your search of a metal profiling company.
Bevel cutting is highly specialized service that few profile cutting companies are equipped to deal with. Advanced Profiles offers an expertise in the field of bevel cutting.
Plasma gouging is a lesser known approach to metal plate processing. However, as it is an extension of plasma cutting, it is assumes many of the same advantages as plasma cutting, as well as the ability to perform other functions.

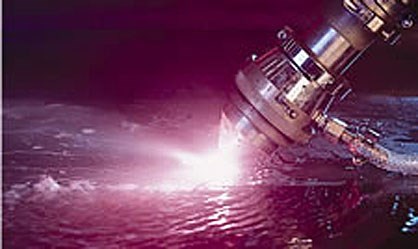

Beveling with the use of plasma cutters is performed at the same time the metal is being cut, a definite time and cost savings for the client.
There are many approaches to precision cutting, specifically in regard to metal materials. The most common types include plasma cutters, laser cutters, and waterjet cutters.
